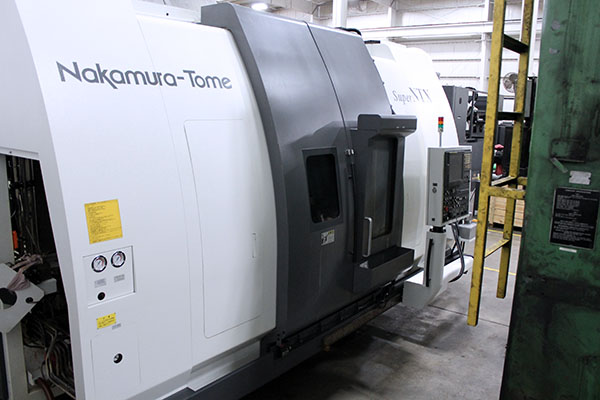

Nakamura Tome Super NTX, Fanuc 16iTB, 8"Chk, 2 1/2", 2003, Barfeed, Mist Collec. Automatics & Machinery Co Inc

Nakamura Tome Super NTX, Fanuc 16iTB, 8"Chk, 2 1/2", 2003, Barfeed, Mist Collec. Our stock number: 400514

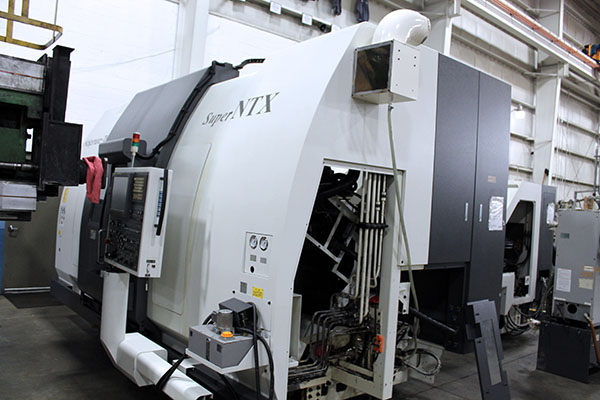

Nakamura Tome Super NTX, Fanuc 16iTB, 8 Chk, 2 1/2 , 2003, Barfeed, Mist Collec.

Click on picture below for larger version

All Information From OEM Brochure Should Be Verified By Buyer:

Equipped With:

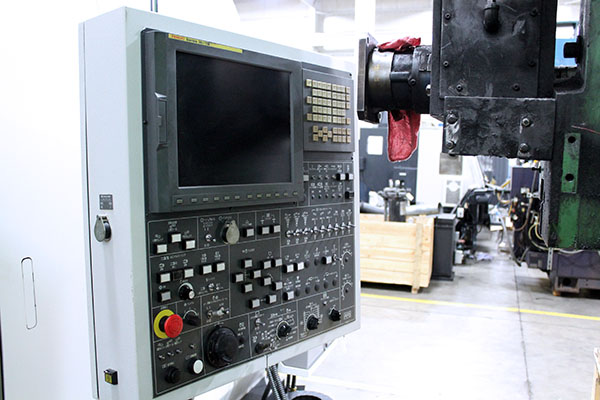

   Fanuc 16iTB CNC Control
   Barfeed

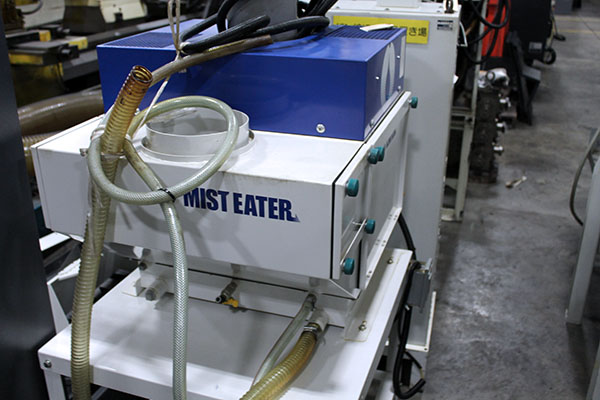

   Mist Collector
   Chip Conveyor

Specifications:
   Tool Changer Positions:                24
   Through Spindle Hole Diameter:         2.5"
   Bar Stock Capacity:                    2.55"
   Spindle Speed:                         4,500 RPM
   Tool Spindle Speed:                    8,000 RPM
   Chuck Size:                            8"
   Turning Diameter:                      15.35"
   Swing Over Slide:                      17.32"
   Turning Length:                        43.31"
   Distance Between Spindles:             9.84" - 55.11"
   Slide Travel (X1/Z1/B2):               24.8"/ 45.27"/ 45.27"
   Slide Travel (X2/X3/Z2/Z3):            10.03"/ 10.03"/ 14.76"/ 14.76"
   Slide Travel (Y):                      6.29"
   Spindle Indexing:                      C-Axis (.001 Degree), Both Spindles
   Tool Diameter/Without Adjacent Tool:   3.54" / 4.72"
   Tool Length / Tool Weight:             11.81" / 17.6 lbs
