To the best of our knowledge all details listed below are deemed correct. It
is the buyer's responsibility to confirm all details and we encourage an
inspection of the machine(s) and accessories prior to purchase.

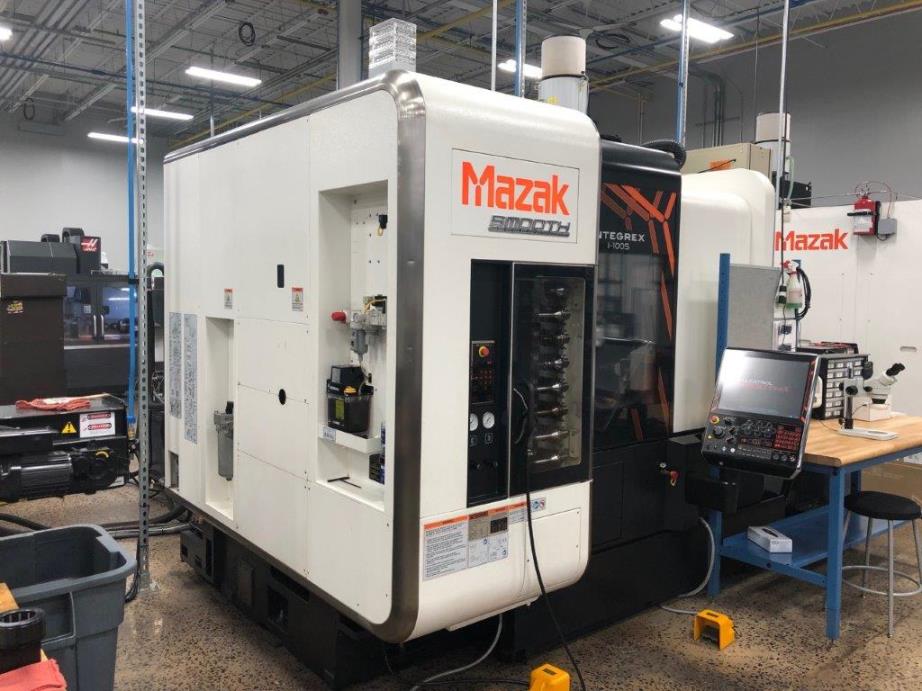

*Two Machines Available - Only Ran Medical Parts*
Equipped With:

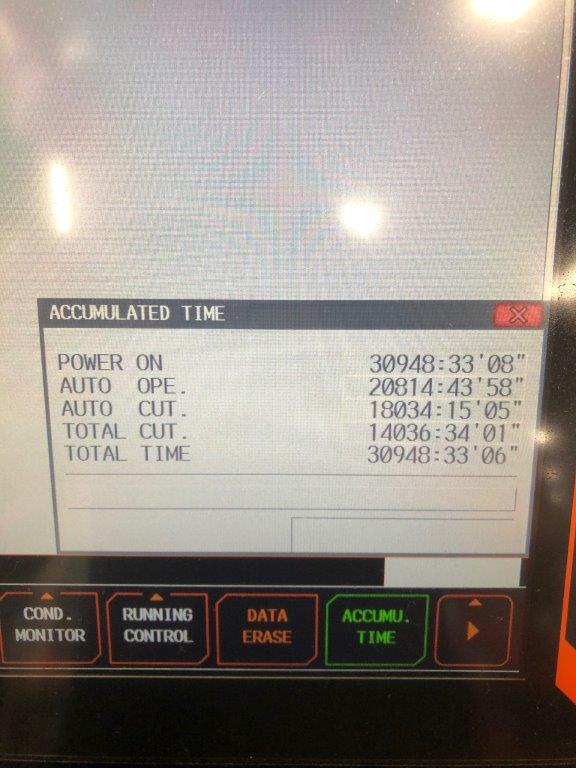

Mazak Smooth HX Control
19" Color CRT
EIA/ISO
Additional EIA/ISO Functions
3-D Coordinate Conversion
G00 Slop Constant
Cylindrical (G12) (EIA)
Independent Rotation
C Axis 0.0001 Increment (1st spindle)
15 HP A2-05 Spindle Nose
15 HP Second Spindle C Axis 0.0001 Increment
Chuck Air Blast 1st and 2nd Spindle
Rotary Tool Speed 12,000 RPM
B Axis Contouring 0.0001 Degree
36 ATC Capto Tool Magazine
6" Dia. Through Hole Chuck for Second Spindle
Kitagawa BB-206 Chuck
Automatic Tool Eye
Coolers for Bal Screws X, Z Axis
Automatic Parts Catcher with Ejector
5-Axis Machining Package For Smooth hx
Tool Radius Comp 5 Axis (G41.5/G42.5)
Signal Tower (3) Lights
Software Upgrade To Support Windows 8
Standard 230 Volt Electrics
Re-Threading Function
ATS System True Length Collet
Error Compensation G54.4
EIA Dynamic, Compensation 1, Work Setting
Draw Bar Adaptor For Optional 2" Bar Capacity Package
Fire Suppressant System
Turret Air Blast
Flood Coolant Nozzle
213 PSI Through Coolant
X,Y,Z Pitch Error Compensation
Absolute Positioning System (Linear Axes)
Tool Holders
Additional 6" Chucks
Collet Chucks with Collets

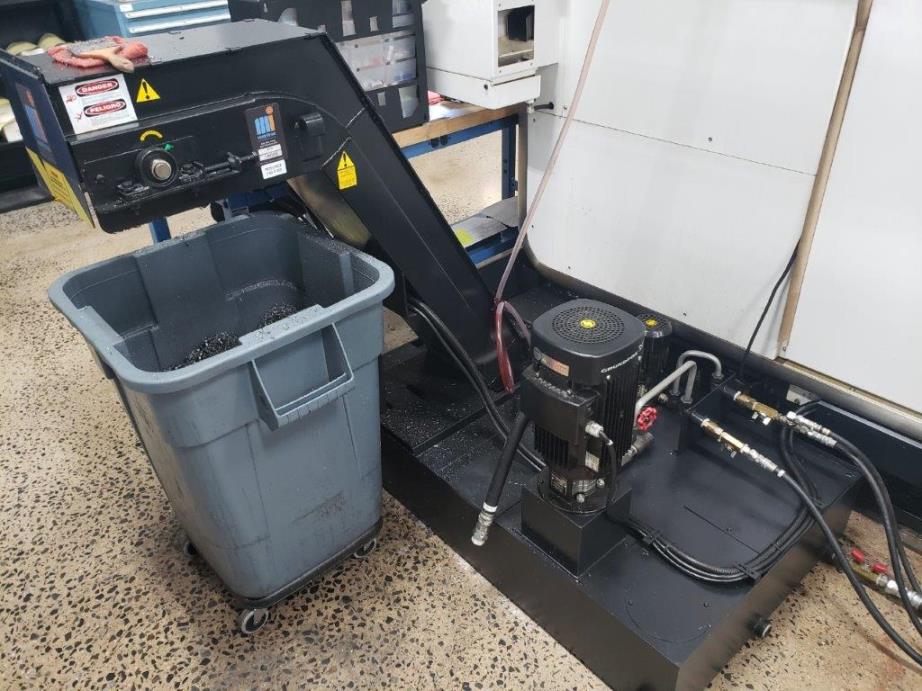

Chip Conveyor
General Specifications:
Capacity:
Swing over the Carriage: 20.9"
Machining Diameter: 19.7"
Cutting Length: 33.6"
Distance between Chuck Jaws: 35.55"
Travels:
X-Axis: 17.72"
X-Axis below Spindle Center Line: 1.96"
Z-Axis: 35.59"
W-Axis (Second Spindle): 35.55"
Y-Axis: 8.27" (+/- 4.13")
B-Axis (0.0001 Degree Increment): 240 Degrees
B-Axis Travel: -30 to +210 Degrees
C-Axis (Main and Second Spindle): True C-Axis
Main Spindle:
Chuck Size: 6" Diameter (8" opt)
Bar Capacity (2" or 2-1/2" Optional): 1.65"
Speed (5,600 RPM with 2" Diameter): 35 - 6,000 RPM
Index - Programmable True C-Axis: 0.0001 Degree
Motor - AC (Continuous / 25% ED): 10/15 HP
Power (Torque): 105 Ft. Lbs
C-Axis Clamping Torque: 1,315 Ft-Lbs
Second Spindle:
Chuck Size: 6" Diameter
Speed: 6,000 RPM
Index - Programmable True C-Axis: 0.0001 Degree
Motor - AC (Continuous / 25% ED): 10/15 HP
Power (Torque): 105 Ft. Lbs
C-Axis Clamping Torque: 1,315 Ft-Lbs
Turret:
Type of Turret: 1 Position
Turret Positioning ("B" Axis): 0.0001 Degree
Rotary Tool Spindle Motor: 7.5 / 10 / 12 HP
Rotary Tool Spindle Speed: 12,000 RPM (15% ED)
ATC:
Tool Magazine Capacity: 36 Tools / 72 Opt
Tool Selection Method: Random
Tool to Tool Time: 1.3 Seconds
Tool Diameter w/ all pockets full: 3.54"
w/ adjacent pockets empty: 5.12"
Tool Length (from Gauge Center Lkne): 9.84"
Tool Weight: 11 Lbs.
Boring Bar Diameter: 1-1/4"
Turning Tool: 3/4" Square Shank
Rapid Traverse:
Z-Axis: 1575 IPM
X-Axis: 1575 IPM
Y-Axis: 1575 IPM
W-Axis: 1181 IPM
C-Axis: 555 IPM
B-Axis: 40 IPM
