Nakamura-Tome Slant 3B, Fanuc 11T, 10"Chk, 3", Chip Conveyor, Tail Stock   Our stock number: 404630

Nakamura-Tome Slant 3B, Fanuc 11T, 10 Chk, 3 , Chip Conveyor, Tail Stock

Click on picture below for larger version

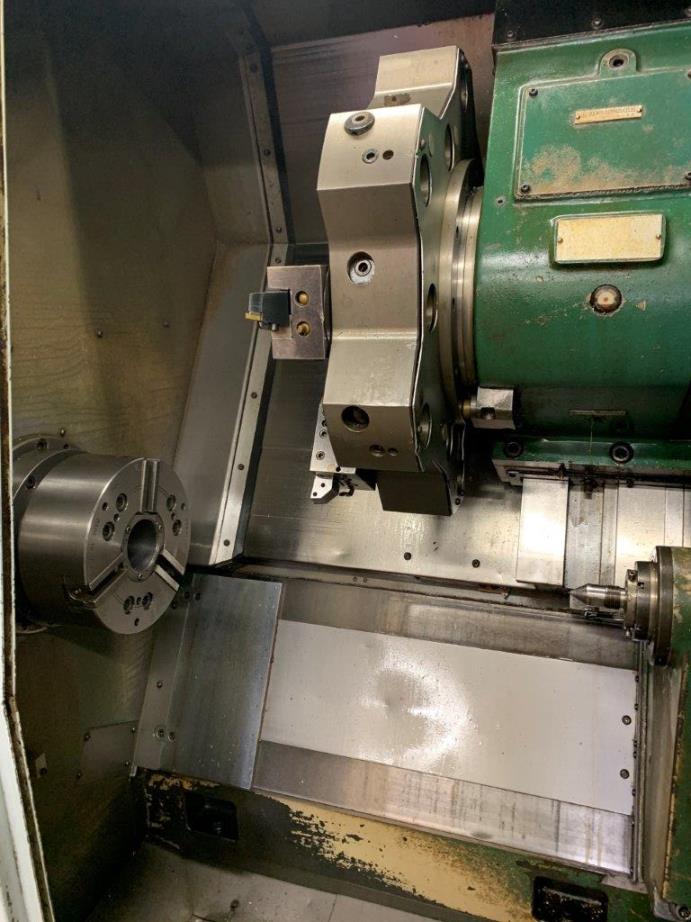

Nakamura-Tome Slant 3B, Fanuc 11T, 10 Chk, 3 , Chip Conveyor, Tail StockNakamura-Tome Slant 3B, Fanuc 11T, 10 Chk, 3 , Chip Conveyor, Tail StockNakamura-Tome Slant 3B, Fanuc 11T, 10 Chk, 3 , Chip Conveyor, Tail StockNakamura-Tome Slant 3B, Fanuc 11T, 10 Chk, 3 , Chip Conveyor, Tail Stock

To the best of our knowledge all details listed below are deemed correct. It

is the buyer's responsibility to confirm all details and we encourage an

inspection of the machine(s) and accessories prior to purchase.

Equipped With:

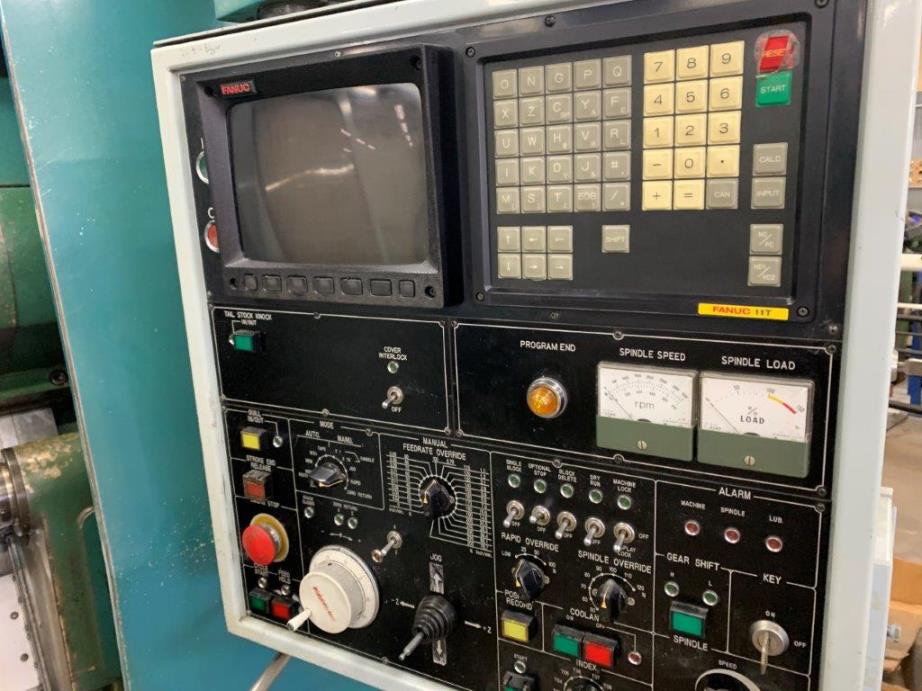

   Fanuc 11T CNC Control

   Tailstock
   Chip Conveyor

General Specifications:
   Swing Over Bed / Cross Slide           31.10"/27.17"
   Turning Diameter:                      15.57"
   Turning Length:                        21.26"
   Z-Axis Travel                          22.83"
   X-Axis Travel                          10.83"
   Distance between centers               29.84"
   Spindle Speeds: Two speed ranges       10 to 958 / 35 to 3500
   Spindle Motor:                         25 HP
   Spindle Nose                           A1-8
   Spindle Bore:                          3.15"
   Max Bar Size                           2.5"
   Turret Stations:                       12
   Tool size:                             1" square / 1" round
   Rapid Travels: X and Z                 X/Z - 295 ipm @ 590 ipm
   Tail stock quill stroke                3.94"
   Tail stock quill diameter              3.54"
   Tail stock taper                       MT-3

Machine Dimensions:                       92" x 69" x 80"
Machine Weight:                           12,100 LBS
