WE HAVE APPROX 50 IN STOCK
**QTY 4 MINIMUM PURCHASE

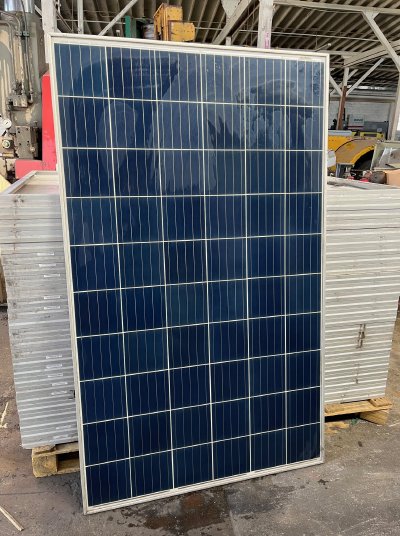

SOLAR PANEL DIMENSIONS: 65"L, X 39.5"W, X 1.5"W / WEIGHT: 40 LBS

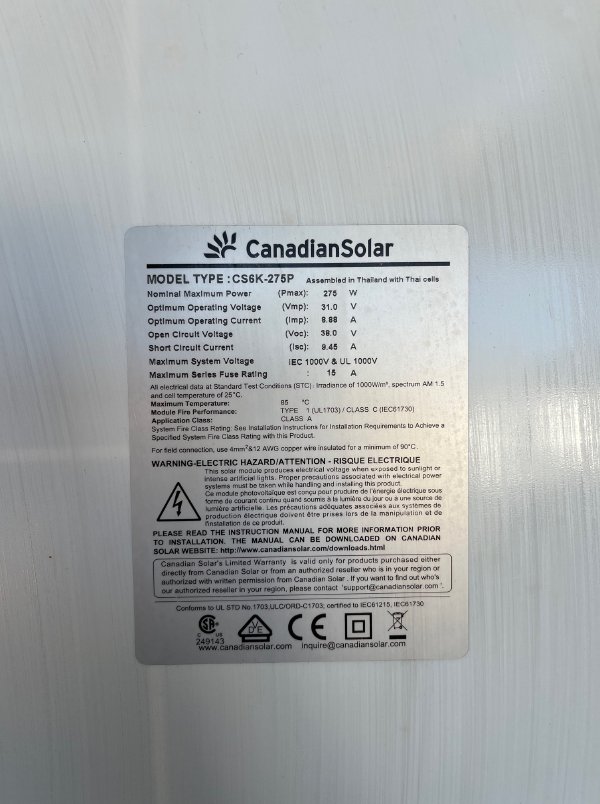

MAKE: CANADIAN SOLAR
MDL: CS6-275P
NORMAL MAX POWER (PMAX): 275 W
OPTIMUM OPERATING VOLTAGE (VMP): 31.0 V
OPTIMUM OPERATING CURRENT (IMP): 8.88 A
OPEN CIRCUIT VOLTAGE (VOC): 38.0 V
SHORT CIRCUIT CURRENT (ISC): 9.45 A
MAXIMUM SYSTEM VOLTAGE IEC 1000V & UL 1000V
MAXIMUM SERIES FUSE RATING: 15 A
APPLICATION CLASS: A
MECHANICAL CHARACTERISTICS
TYPE: MONOCRYSTALLINE SILICON

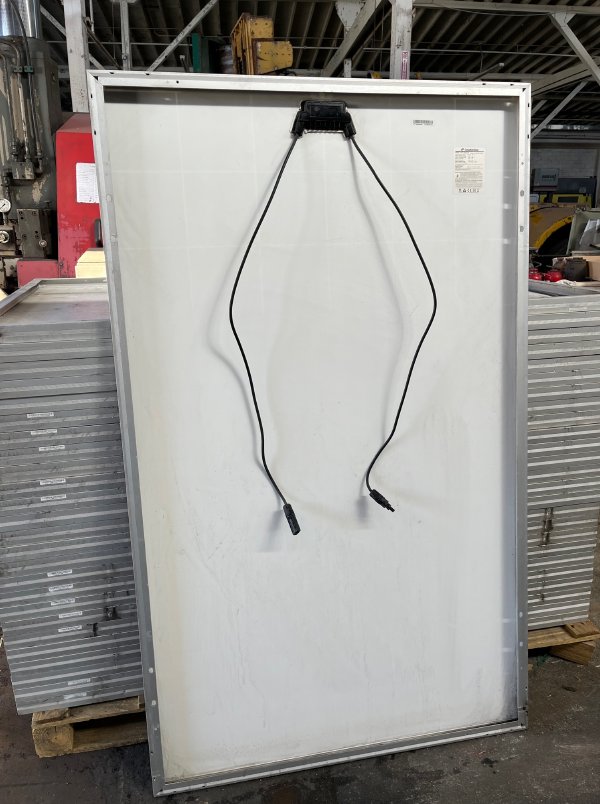

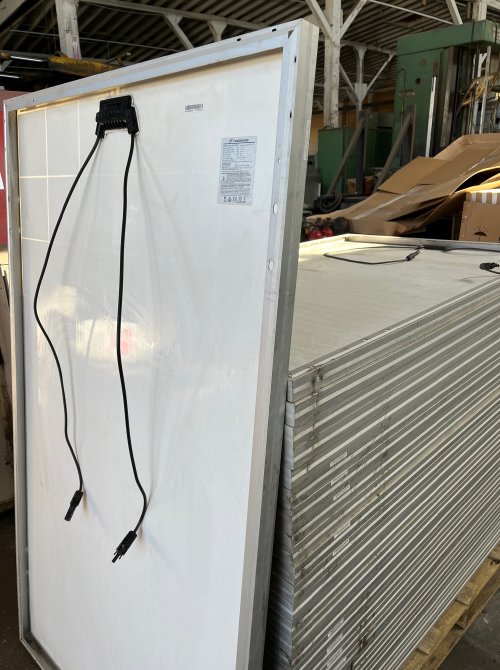

OUTPUT TERMINAL TYPE: CANADIAN SOLAR T4
OUTPUT CABLE WIRE GAUGE: 12 AWG
OUTPUT CABLE WIRE TYPE: PV WIRE
OUTPUT CABLE WIRE LENGHT: 39.4IN (1,000MM)
PRICE: $80.00 PLUS TAX
***PURCHASED FROM AN INSURANCE COMPANY
***BUYERS MUST INSPECT UPON PICK UP
YOU CAN CHECK EACH PANEL WITH A VOLTMETER
BEFORE YOU LOAD.
***SPECIFICATION SHOW ARE TO BE USED
AS A GUIDELINE ONLY. IT IS THE CUSTOMERS
RESPONSIBILITY TO CHECK FOR SIZE AND FEATURES
BEFORE PURCHASING. WE WILL NOT BE RESPONSIBLE
FOR ERROR OR OMISSIONS.
